Metal Access Panels
your security requirements.
INVI AccessDor is a great addition to any room, hide the appearance of access panels or service cupboards by specifying INVI AccessDor in your next project.
FEATURES
- Standard sizes available to fit your project needs.
- Various latch options to suit your security requirements; including screwdriver cam latch, key operated cam latch, touch latch or deadbolt lock for maximum security.
- A series of Fire, Acoustic & Airtight ratings available depending on model.
- A number of models are designed for a Quickfit installation – save up to 80% of the time taken to fit an access panel.
- A range of picture frame options are available.
Product Name | Metal Door Stock | Plasterboard Door Stock | Riser Door Budget | Riser Door Standard | Riser Door Premium | Slim Fit | Metal Door El Panel | Tile Panel |
Product Profile |
|
|
|
|
|
|
|
|
Product Description | FF Stock Range | FF Stock Range | Budget Riser Door | Standard Riser Door | Premium Riser Door | Slim Line Access Panel | Insulation FR Riser Door | Tile Face Access Panel |
Sizing - Standard or Bespoke | Both | Both | Bespoke only | Bespoke only | Bespoke only | Bespoke only | Bespoke only | Bespoke only |
Application - Wall or Ceiling | Both | Both | Wall | Wall | Wall | Both (2) | Wall | Wall |
Quickfit Installation | Yes | Yes | Yes | Yes | Yes | No | No | Both |
Finish | 9010 or Bespoke | 9010 or Bespoke (1) | 9010 or Bespoke | 9010 or Bespoke | 9010 or Bespoke | 9010 or Bespoke | 9010 or Bespoke | 9010 or Bespoke (3) |
Frame Type - Picture or Beaded | Both | Both | Both | Both | Both | Both | Both | Both |
Fire Rating | Up to 120 minutes | Up to 60 minutes | Up to 60 minutes | Up to 120 minutes | Up to 120 minutes | Up to 120 minutes | Up to 90 minutes | Up to 120 minutes |
Acoustic Rating | No | No | No | Up to 33dB | Up to 40dB | Up to 30dB | Up to 46dB | No |
Airtight Rating | No | No | No | Class 2 | Class 3 | Class 2 | No | No |
FAQ
INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Yes, custom made INVI Jambs are available with no header for full height doors.
The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
- Key Features
-
FEATURES
- Standard sizes available to fit your project needs.
- Various latch options to suit your security requirements; including screwdriver cam latch, key operated cam latch, touch latch or deadbolt lock for maximum security.
- A series of Fire, Acoustic & Airtight ratings available depending on model.
- A number of models are designed for a Quickfit installation – save up to 80% of the time taken to fit an access panel.
- A range of picture frame options are available.
- Access Panels Available
-
Product Name

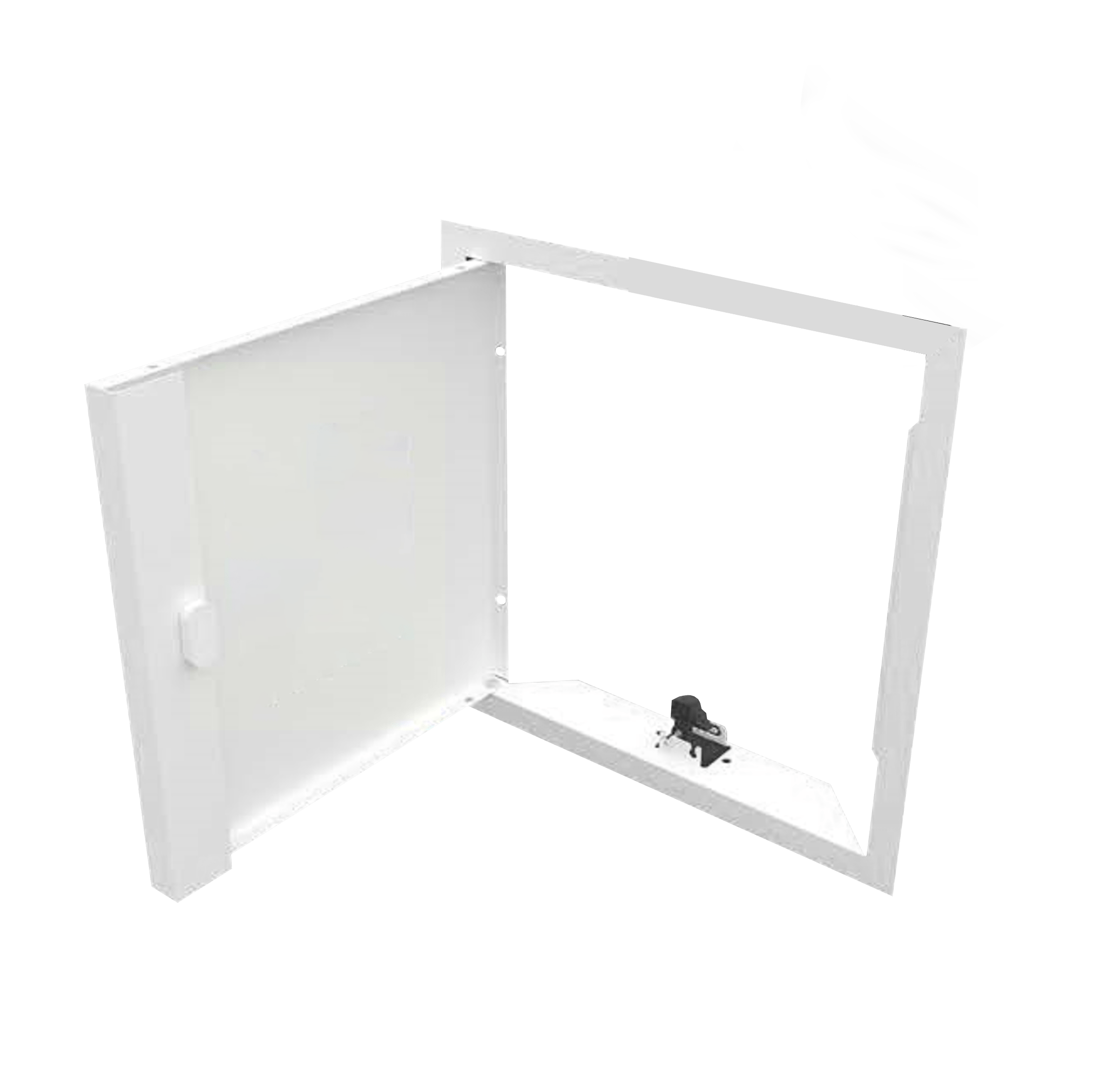

Metal Door Stock
Plasterboard Door Stock
Riser Door Budget
Riser Door Standard
Riser Door Premium

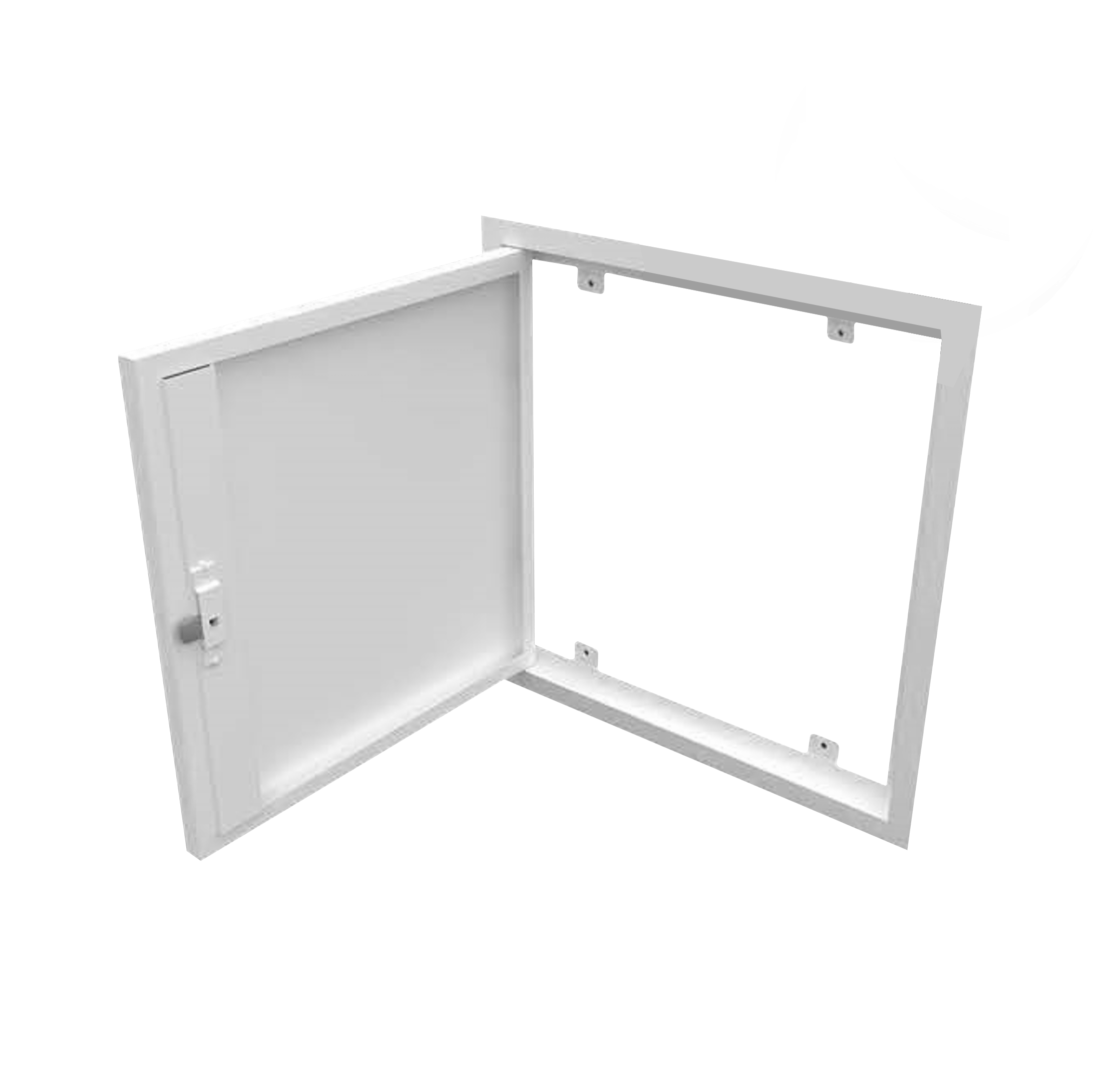

Slim Fit
Metal Door El Panel
Tile Panel
Product Profile
Product Description
FF Stock Range FF Stock Range Budget Riser Door Standard Riser Door Premium Riser Door Slim Line Access Panel Insulation FR Riser Door Tile Face Access Panel Sizing - Standard or Bespoke
Both Both Bespoke only Bespoke only Bespoke only Bespoke only Bespoke only Bespoke only Application - Wall or Ceiling
Both Both Wall Wall Wall Both (2) Wall Wall Quickfit Installation
Yes Yes Yes Yes Yes No No Both Finish
9010 or Bespoke 9010 or Bespoke (1) 9010 or Bespoke 9010 or Bespoke 9010 or Bespoke 9010 or Bespoke 9010 or Bespoke 9010 or Bespoke (3) Frame Type - Picture or Beaded
Both Both Both Both Both Both Both Both Fire Rating
Up to 120 minutes Up to 60 minutes Up to 60 minutes Up to 120 minutes Up to 120 minutes Up to 120 minutes Up to 90 minutes Up to 120 minutes Acoustic Rating
No No No Up to 33dB Up to 40dB Up to 30dB Up to 46dB No Airtight Rating
No No No Class 2 Class 3 Class 2 No No - Resources
- FAQ
-
FAQ
Do I have to use any special paint or preparation methods on INVI Concept products?INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Can I fit architraves with the INVI Jamb system?Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Will plaster crack around the edges of the INVI Jamb?Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Can INVI Jamb be used in a doorway with no header?Yes, custom made INVI Jambs are available with no header for full height doors.
What jamb studs do I use for the opening of an INVI Jamb?The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
What material are INVI Concept products made from?INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
Are your frames welded?INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
