Custom Shadowline

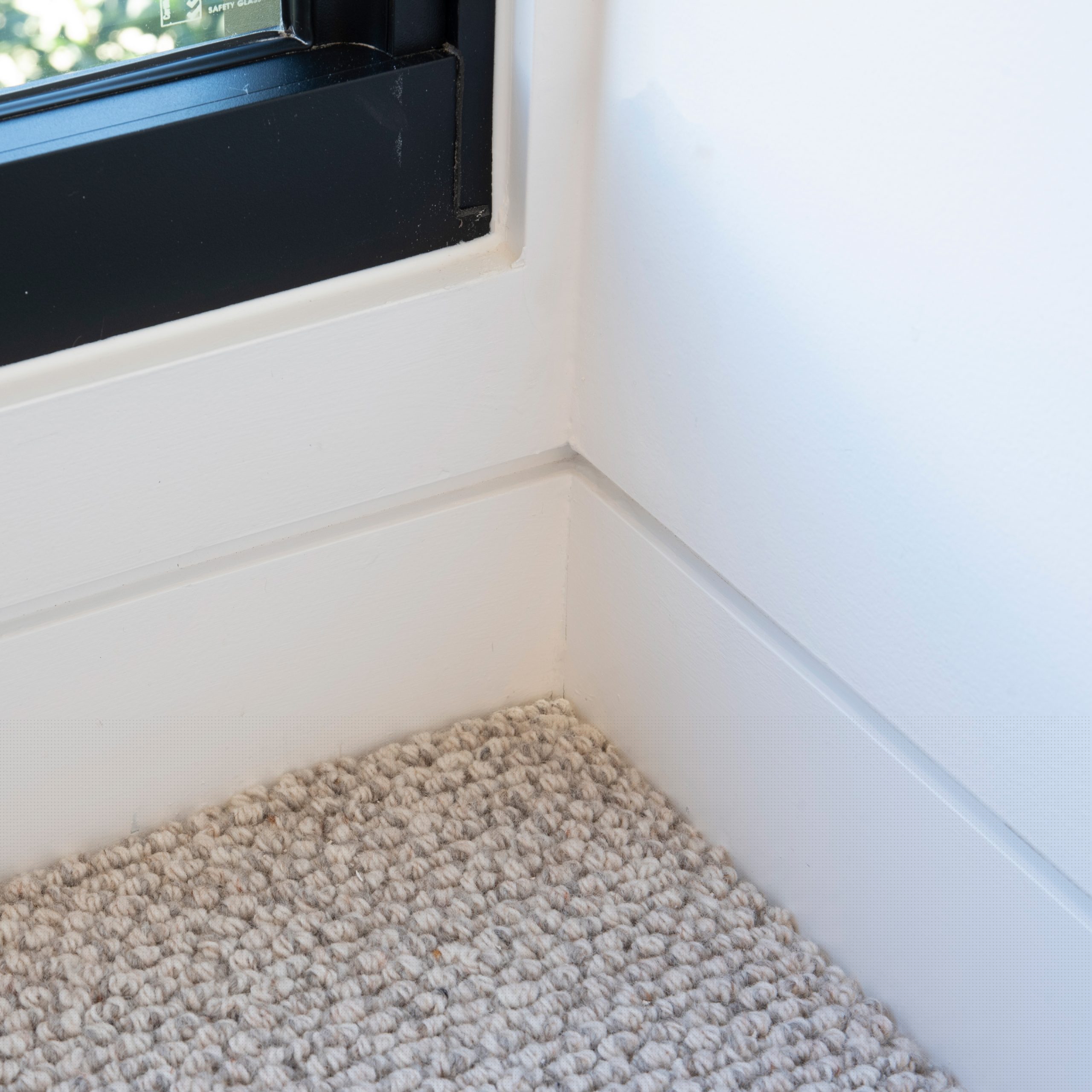

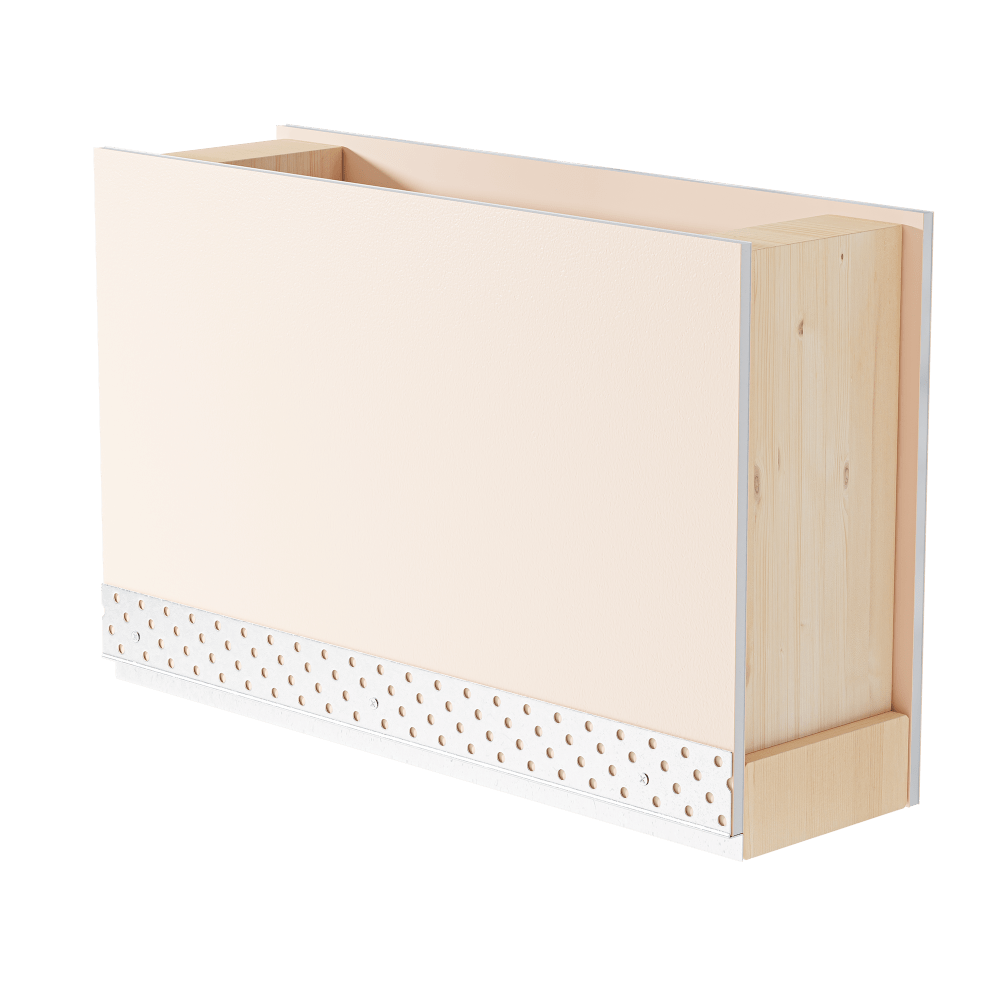

Modern interior design is characterised by clean lines and flush finishes. Shadowline sections provide simple yet effective details to interior spaces, such as ceiling perimeters, doorways and skirting boards, amongst other applications. To create a unique profile for your project INVI Concept® presents Custom Shadowline; made to meet your specific size requirements for the perfect fit in your design.
FEATURES
- Create the exact shadowline you need.
- Allow for variations in floor height or plaster thickness using a custom formed section.
- Heavy duty material to create a perfect straight and clean line
| Part No. | 'a' Section Width | 'b' Section Height | Length |
|---|---|---|---|
| SL-1212100 | 12mm | 12mm | 3000mm |
| SL-121100 | 12mm | 25mm | 3000mm |
| SL- 5814100 | 16mm | 6mm | 3000mm |
| SL -5812100 | 16mm | 12mm | 3000mm |
| SL -581100 | 16mm | 25mm | 3000mm |
FAQ
INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Yes, custom made INVI Jambs are available with no header for full height doors.
The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
- Key Features
-
FEATURES
- Create the exact shadowline you need.
- Allow for variations in floor height or plaster thickness using a custom formed section.
- Heavy duty material to create a perfect straight and clean line
Part No.
'a' Section Width
'b' Section Height
Length
SL-1212100 12mm 12mm 3000mm SL-121100 12mm 25mm 3000mm SL- 5814100 16mm 6mm 3000mm SL -5812100 16mm 12mm 3000mm SL -581100 16mm 25mm 3000mm - Resources
- FAQ
-
FAQ
Do I have to use any special paint or preparation methods on INVI Concept products?INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Can I fit architraves with the INVI Jamb system?Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Will plaster crack around the edges of the INVI Jamb?Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Can INVI Jamb be used in a doorway with no header?Yes, custom made INVI Jambs are available with no header for full height doors.
What jamb studs do I use for the opening of an INVI Jamb?The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
What material are INVI Concept products made from?INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
Are your frames welded?INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
