Pocket Door Trim Kit
Transform from traditional to modern pocket doors with INVI CavKit

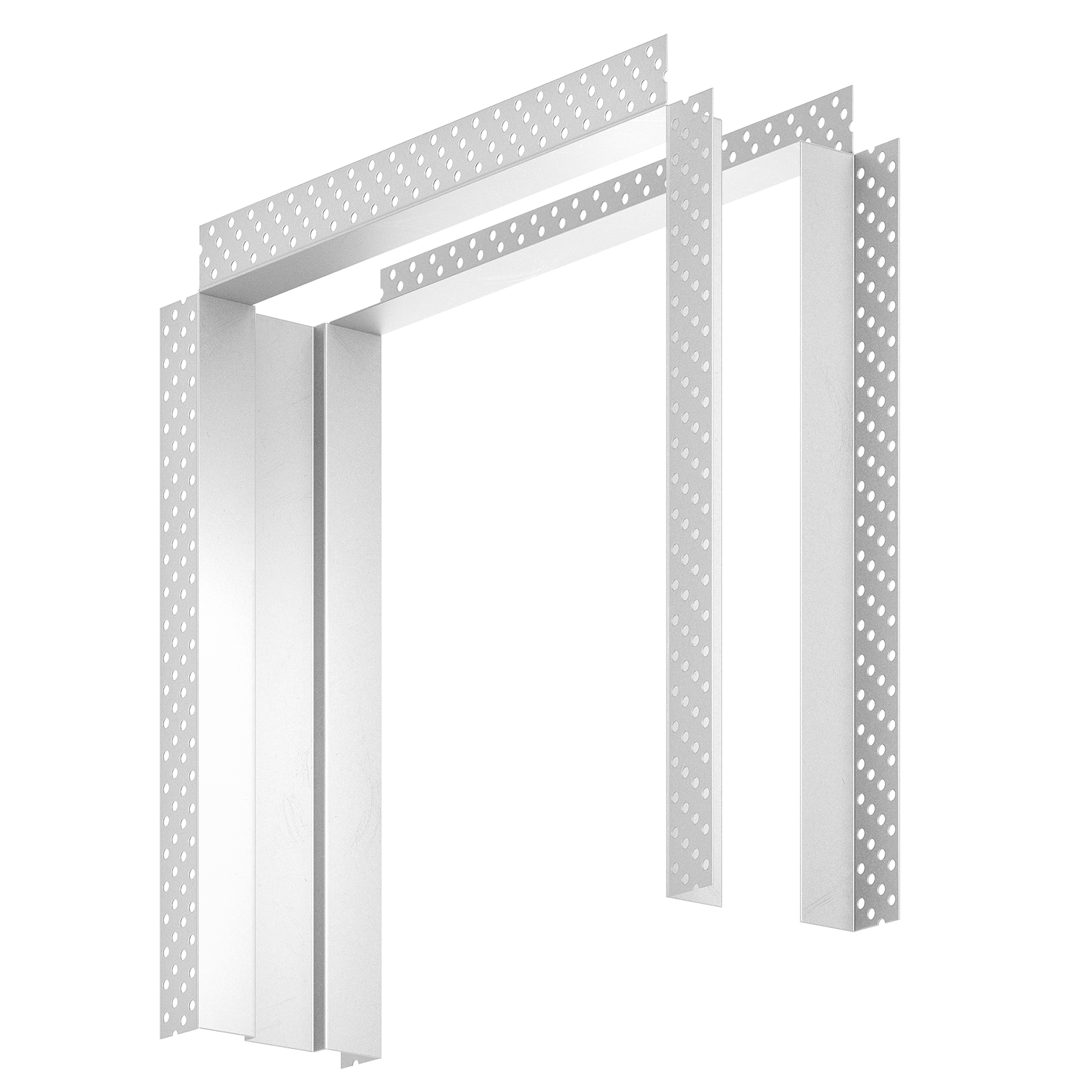

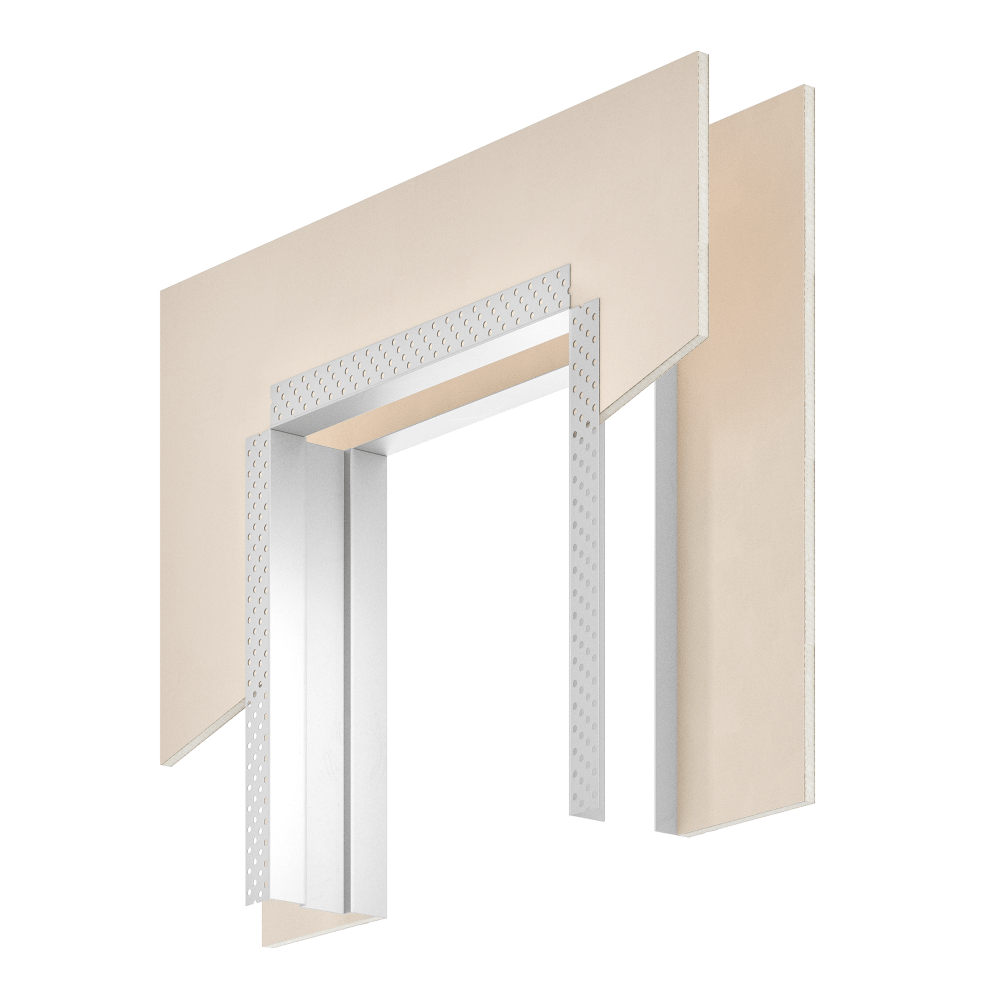

INVI CavKit® is a flush finish pocket door kit that trims and caps the drywall edges around the door penetration to create a pocket door that can be hidden when open and provide privacy when closed. Transform standard pocket doors into architrave-free pocket doors with INVI CavKit!
FEATURES
This also complements and tones in with the INVI Jamb® flush finish door jamb system. The INVI CavKit System can easily be installed using our complete Installation Instructions.
Product Advantages
- Door appears invisible when open
- Provides privacy when closed
- Transforms standard pocket doors into flush finish pocket doors without having to replace the entire system
- ABS soft-close add-on option available
FAQ
INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Yes, custom made INVI Jambs are available with no header for full height doors.
The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
- Key Features
-
FEATURES
INVI CavKit can be used to transform standard pocket doors into architrave free, flush finish cavity sliders.This also complements and tones in with the INVI Jamb® flush finish door jamb system. The INVI CavKit System can easily be installed using our complete Installation Instructions.
Product Advantages
- Door appears invisible when open
- Provides privacy when closed
- Transforms standard pocket doors into flush finish pocket doors without having to replace the entire system
- ABS soft-close add-on option available
- Resources
- FAQ
-
FAQ
Do I have to use any special paint or preparation methods on INVI Concept products?INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Can I fit architraves with the INVI Jamb system?Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Will plaster crack around the edges of the INVI Jamb?Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Can INVI Jamb be used in a doorway with no header?Yes, custom made INVI Jambs are available with no header for full height doors.
What jamb studs do I use for the opening of an INVI Jamb?The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
What material are INVI Concept products made from?INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
Are your frames welded?INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
