Custom rebates and capping made easy

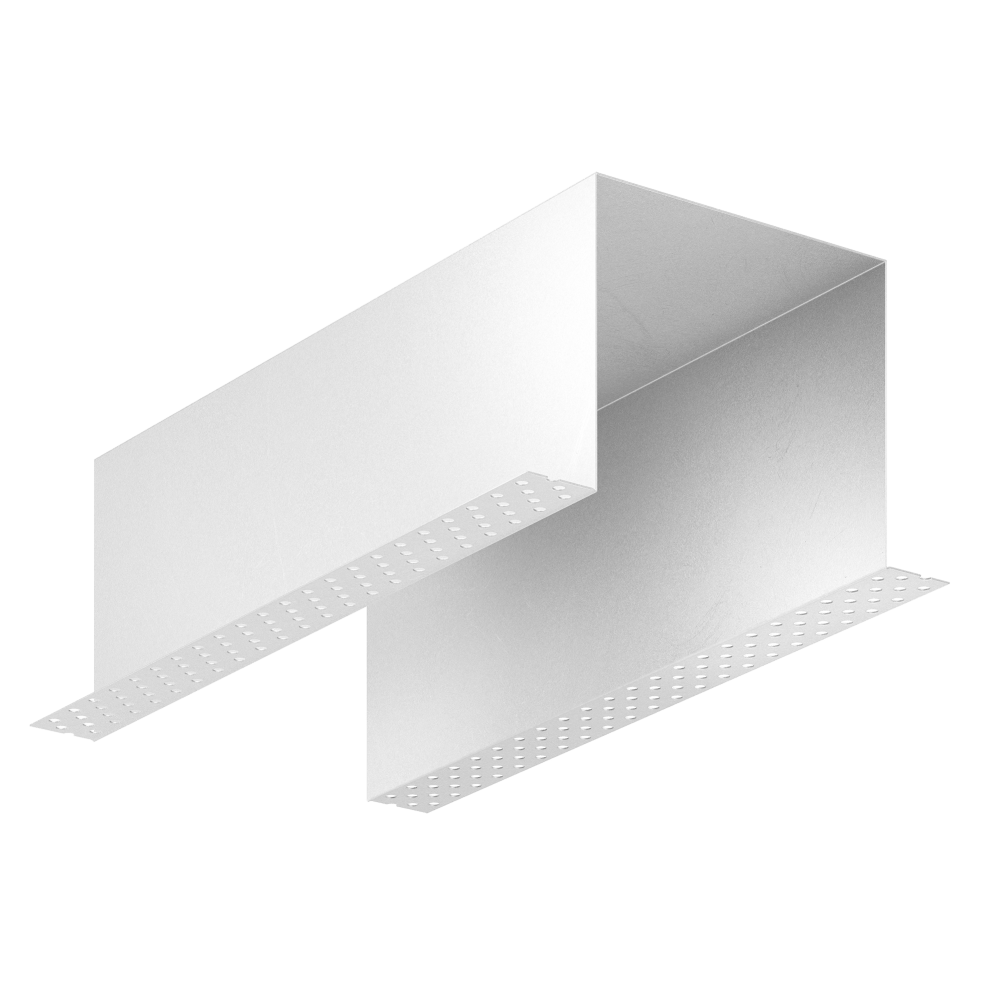

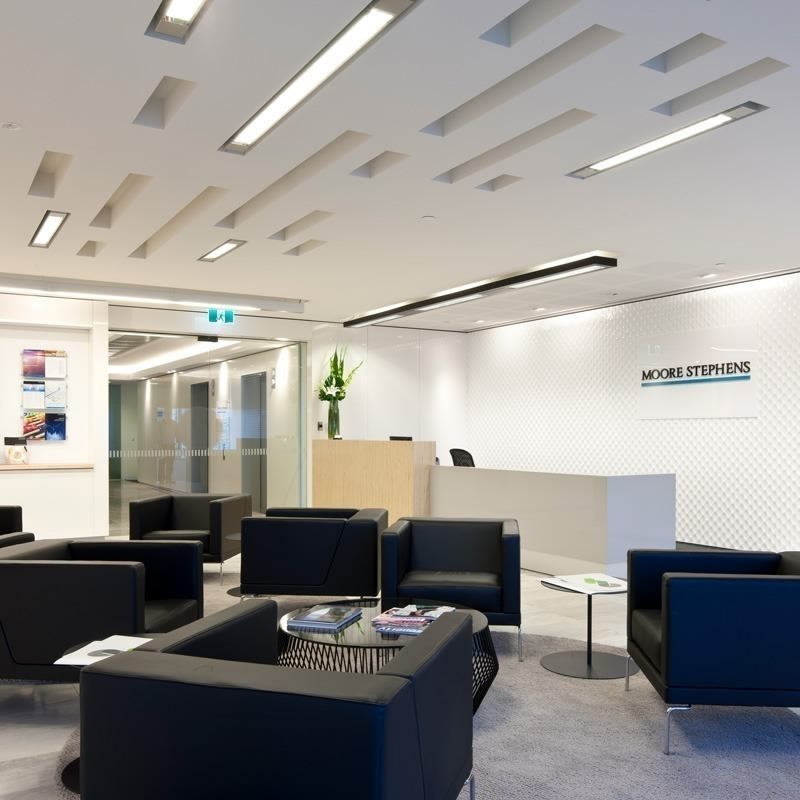

Inspired wall and ceiling designs command attention using INVI FastCap®; this innovative solution easily inserts between two sections of drywall to make light work of difficult rebates, plasterboard profiles and large oversized shadowlines.

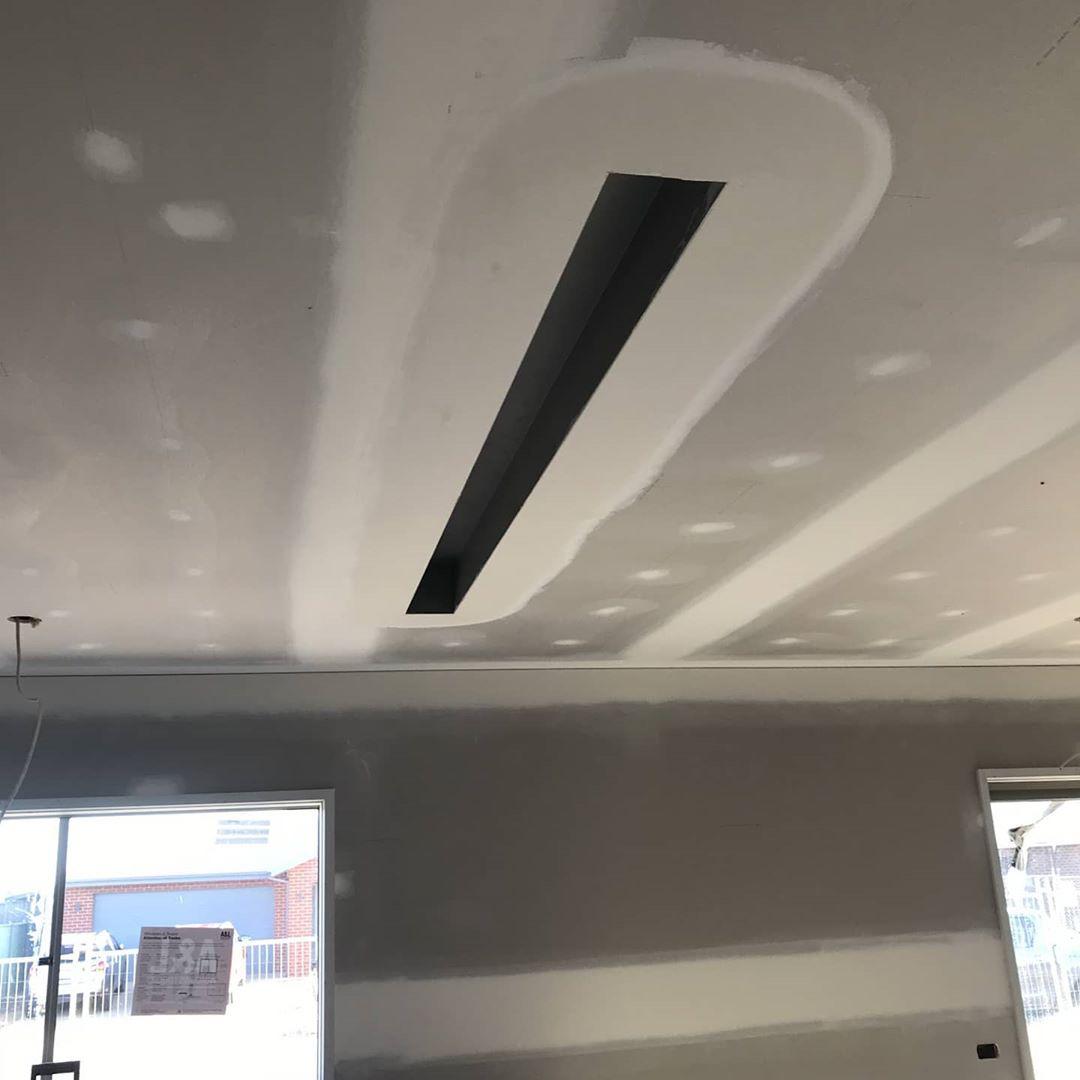

Recessing feature lighting or hardware, custom finishing and capping of plasterboard is made easy with the INVI Fastcap range of custom made finishing sections.
Our design and consultancy team is ready to help design and produce an innovative solution to your requirements for any size project.
FEATURES
Product Advantages
- Suitable for wall or ceiling applications.
- Custom made to produce the optimal solution to suit the requirements of any size project.
- Can be painted in with the rest of the ceiling due to the pre-finished ready to paint surface.
- Quick and economic to install.

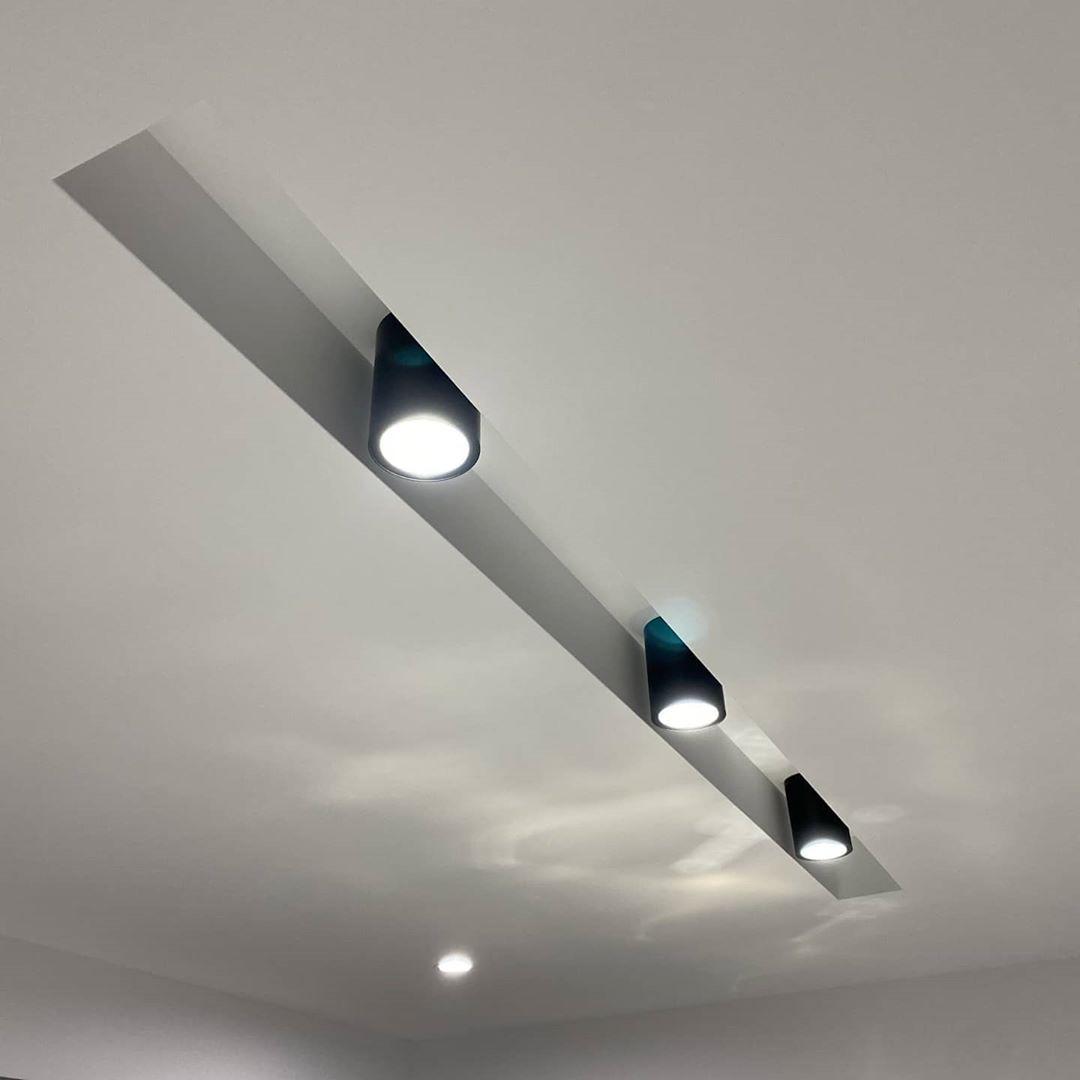

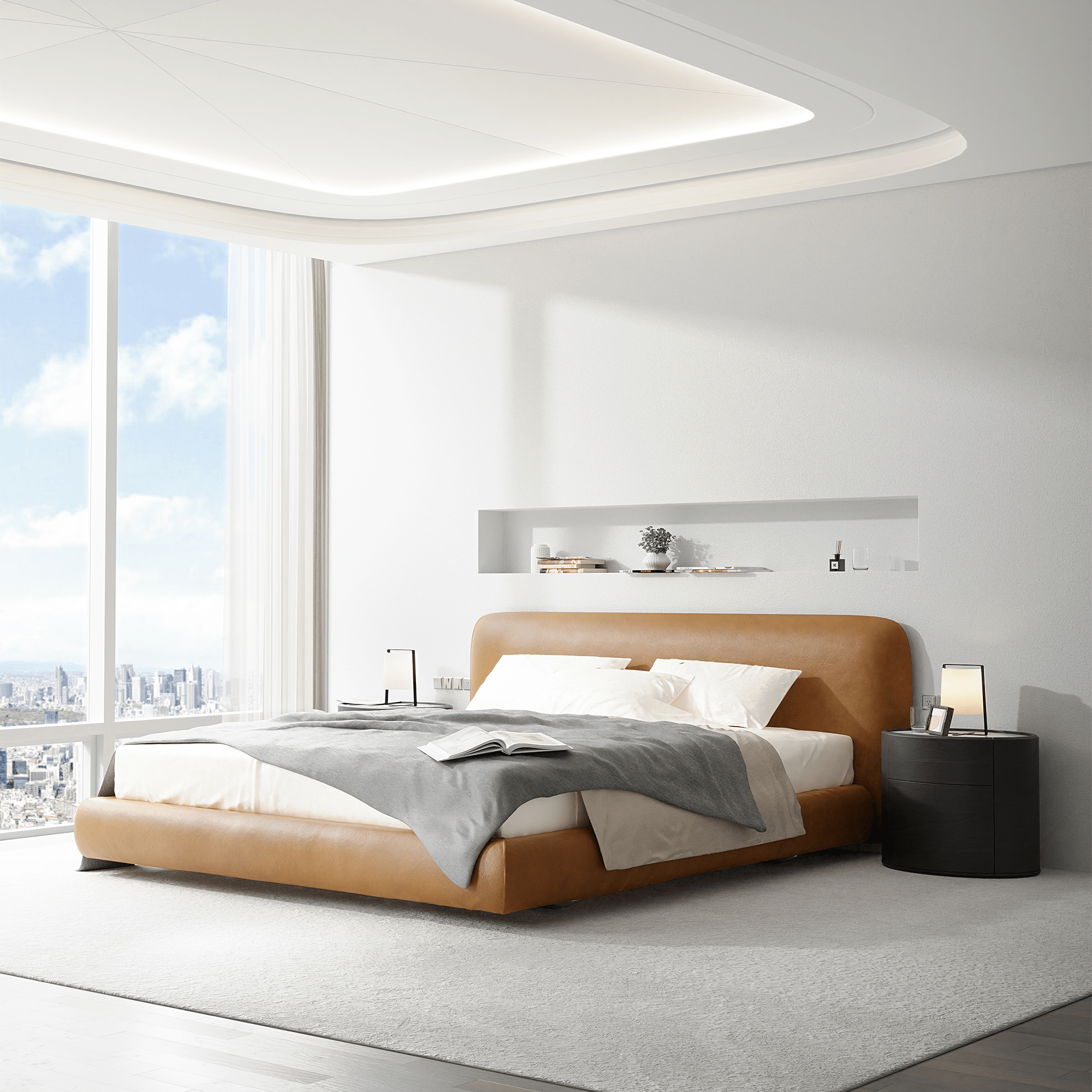

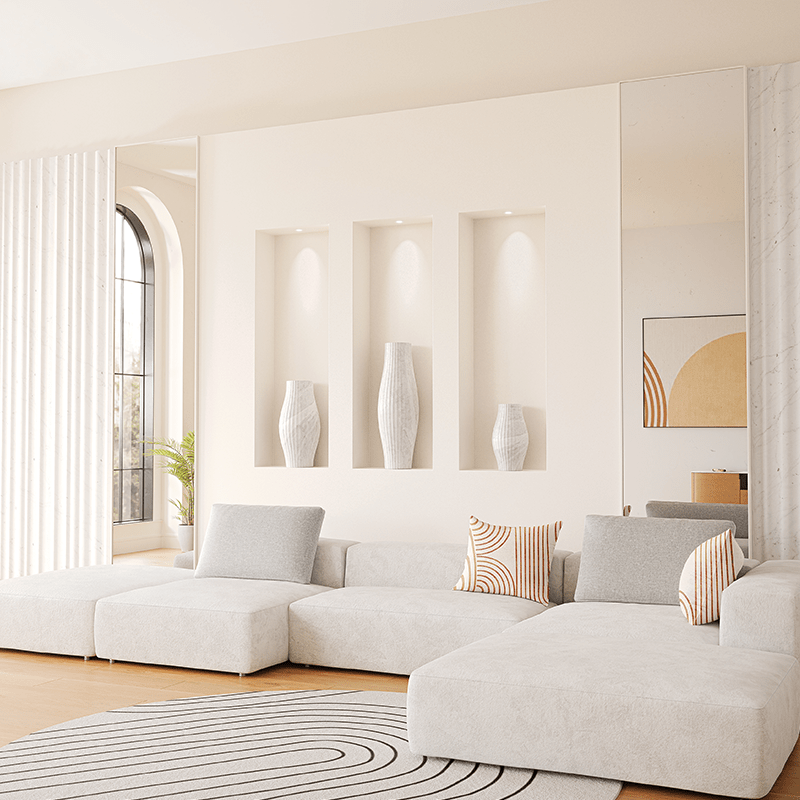

- Ideal for creating recessed features, shower niches or concealing lighting.
FAQ
INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Yes, custom made INVI Jambs are available with no header for full height doors.
The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
- Key Features
-
FEATURES
INVI FastCap custom finishing sections make the finishing of difficult plasterboard profiles, rebates and large oversized shadowlines a dream.Product Advantages
- Suitable for wall or ceiling applications.
- Custom made to produce the optimal solution to suit the requirements of any size project.
- Can be painted in with the rest of the ceiling due to the pre-finished ready to paint surface.
- Quick and economic to install.
- Ideal for creating recessed features, shower niches or concealing lighting.
- Resources
- FAQ
-
FAQ
Do I have to use any special paint or preparation methods on INVI Concept products?INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Can I fit architraves with the INVI Jamb system?Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Will plaster crack around the edges of the INVI Jamb?Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Can INVI Jamb be used in a doorway with no header?Yes, custom made INVI Jambs are available with no header for full height doors.
What jamb studs do I use for the opening of an INVI Jamb?The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
What material are INVI Concept products made from?INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
Are your frames welded?INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
