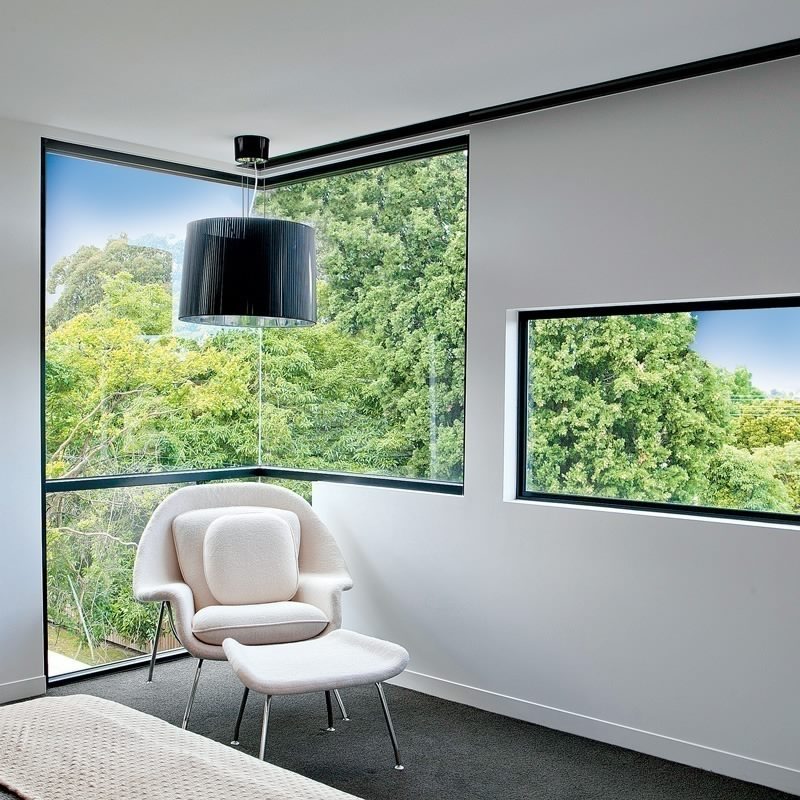

Square Set Architrave Free Window Reveals
Create a premium architrave-free, square-set interior finish with INVI Reveal; the durable steel window reveal that eliminates the need for architraves.
Using a metal reveal is more durable than timber, as it doesn’t warp or crack over time, especially in sun-exposed areas.
Installation is simple and secure with INVI Reveal®; manufactured from cold rolled Steel and designed for quick and economical finishing, the specially formulated surface offers a seamless connection with the plasterboard.
INVI Reveal includes pre-punched perforated sides for fixing and is available in standard and custom reveal lengths.
FEATURES
Product Advantages
- Designed for quick and economical finishing of reveals from 20 to 250mm
- 20 width variants to suit various applications
- Specially formulated surface finish for seamless connection with the plasterboard
- INVI Reveal can be used with PVC finish trim to create custom size reveals
- Custom made width and length INVI Reveal available
FAQ
INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Yes, custom made INVI Jambs are available with no header for full height doors.
The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
- Key Features
-
FEATURES
Available in Square Set, Window and Custom Window Reveals, protect your windows whilst boosting your interior aesthetics with INVI Reveal.Product Advantages
- Designed for quick and economical finishing of reveals from 20 to 250mm
- 20 width variants to suit various applications
- Specially formulated surface finish for seamless connection with the plasterboard
- INVI Reveal can be used with PVC finish trim to create custom size reveals
- Custom made width and length INVI Reveal available
- Resources
- FAQ
-
FAQ
Do I have to use any special paint or preparation methods on INVI Concept products?INVI Concept products are manufactured from zinc annealed steel and meet the finished surfaces standard AS/NZS 2311:2009 to ensure it can be painted immediately with standard wall paints, without any special preparation, so long as it is free of dust, dirt and oil.
Can I fit architraves with the INVI Jamb system?Yes, architraves can be fitted, but the INVI Jamb concept is designed to create an ‘architrave-free’ opening.
Will plaster crack around the edges of the INVI Jamb?Plaster around the edges of the INVI Jamb will not crack if the INVI Jamb is installed according to the installation guide — i.e. must be screwed off every 200mm and double screwed at the hinge points and top corners. INVI Jamb then becomes an integral part of the wall.
Can INVI Jamb be used in a doorway with no header?Yes, custom made INVI Jambs are available with no header for full height doors.
What jamb studs do I use for the opening of an INVI Jamb?The manufacturer strongly recommends a timber stud or a 0.75 BMT metal stud on both sides of the opening.
What material are INVI Concept products made from?INVI Concept products are manufactured from highest quality zinc annealed cold-formed steel sections.
Are your frames welded?INVI Jamb frames are not welded and are clipped together using a unique INVI Jamb system that ensures an easy install and smooth finish.
