Compare INVI Jambs Profiles

INVI Jamb® is the flush door jamb system that eliminates the need for architraves around the door frame and blends seamlessly into any modern square set interior design.

INVI Jamb is available in four flush profiles to suit a variety of applications:

  • Classic split type jamb (INVI Jamb Classic Adjust – EZC)
  • Single rebated door jamb (INVI Jamb Single Rebate – SRC)
  • Inswing door jamb (INVI Jamb Inswing Door – ISD)
  • Double rebate door jamb for hotels room partitions (INVI Jamb Double Rebate – DRC)

All INVI Jamb profiles:

  • Are manufactured by Minarchi UK®, using high quality cold-formed steel.
  • Have perforated sides for flush jointing around the plasterboard, making them the fastest, most economical way to create flush door frames.
  • Have a specialist coating and can be painted immediately, readily accepting a level 5 finish.
  • Have surpassed the 10,000 door slam test, proving their durability.
  • Are available with premium INVI Hardware® concealed hinges

With four INVI Jamb profiles to choose from, we have outlined a few key differences on the next page that will help you to choose the right product for your project.

Alternatively, you can contact our team on 020 3488 9655 for assistance.

Product Code

INVI Jamb EZC – Classic Adjust Door Jamb


INVI Jamb SRC – Single Rebate Door Jamb


INVI Jamb ISD – Inswing Door Jamb


INVI Jamb DRC – Double Rebate Door Jamb


Description

Two-piece split type door jamb – flush on one side of the door and rebated on the other. One-piece door jamb – flush on one side of the door, with a single rebate on the other.
The door swings open into the corresponding room, with the flush side in line with the wall face.Allows for two door
panels to be installed on the same door jamb, with a flush finish on both sides of the wall.
Product Image

EzyJamb EZC Profile

EzyJamb SRC Profile

EzyJamb ISD Profile

EzyJamb DRC Double Rabbet Profile

Suitable for internal door applications

YesYesYesYes
Two-piece adjustable jamb (9.5mm +/-)

Yes
One-piece jamb

YesYesYes
Rebate on 'push' side of the door

Classic rebateSingle Rebate Flush with wall faceFlush with wall face
Rebate on 'pull' side of the door

Flush with wall faceFlush with wall faceSingle RebateFlush with wall face
Allows two doors to be hung on same jamb

Yes
Material

20ga Galvanneal Steel18ga Zintec Steel18ga Zintec Steel18ga Zintec Steel
Max Width (Single)

932mm932mm932mm932mm
Max Width (Double)

1864mm1864mm1864mm1864mm
Max Height

2450mm3048mm3048mm3048mm
Max HeightSelected sizes available for QuickShip.

YesYesYes
Custom Sizes
Available
YesYesYesYes
Suits 44mm Doors
YesYesYes
Suits 54mm Doors
YesYesYesYes
FD30 or FD60 Fire Rating (Size limitations apply)
YesYesYesTBC
Concealed Hinges
YesYesYesYes
Surface Butt Hinges
Yes
Mortice Butt Hinges
YesYesYes
Pivot Hinges

Yes

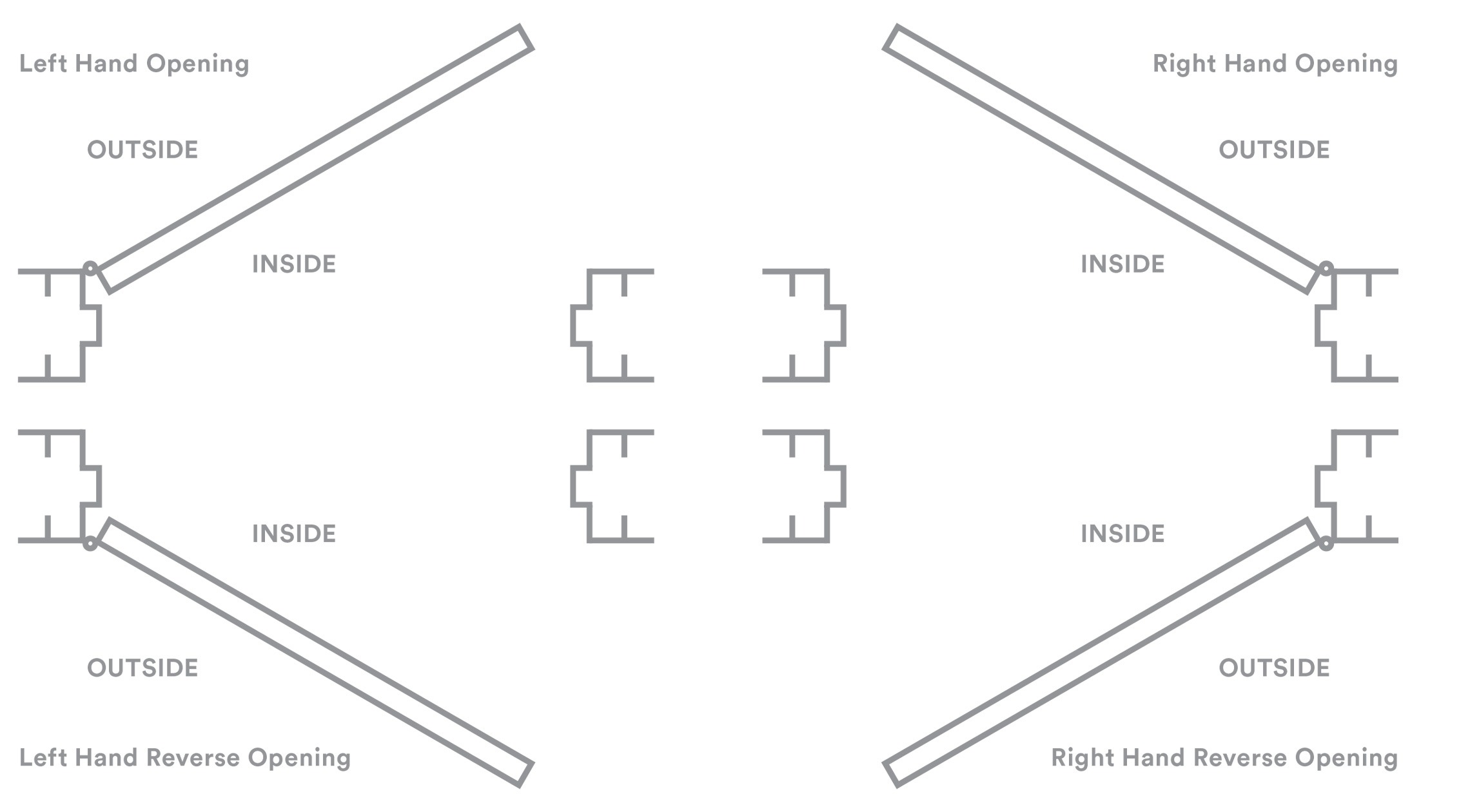

Door Handing
